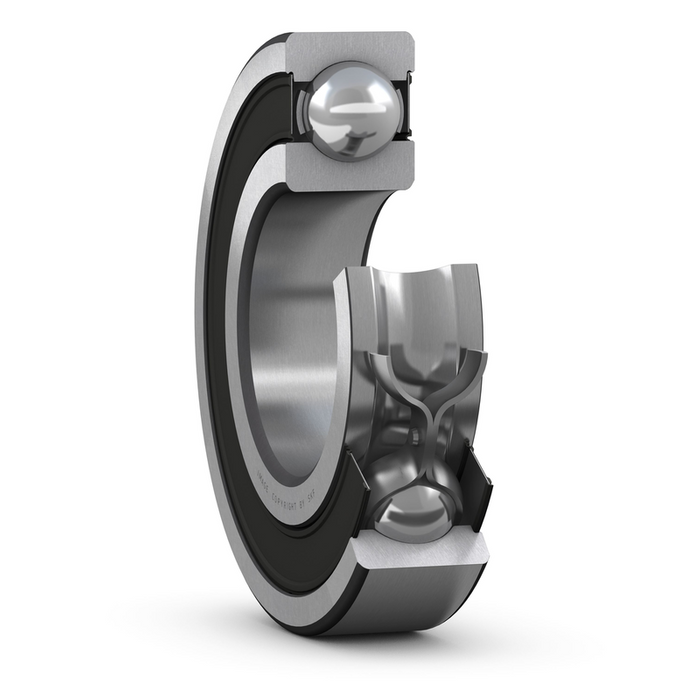

Metric Deep Groove Ball Bearing SKF - 6009-2RS1

Stock Code:
6009-2RS1
Price:
$53.87
Stock Level:
In Stock

Description

Deep groove ball bearings
- 2RS1: Contact seal, NBR, on both sides

DIMENSIONS
d 45 mm Bore diameter
D 75 mm Outside diameter
B 16 mm Width
d1 ˜54.75 mm Shoulder diameter
D2 ˜67.8 mm Recess diameter
r1,2 min.1 mm Chamfer dimension

ABUTMENT DIMENSIONS
da min.50.8 mm Diameter of shaft abutment
da max.54.7 mm Diameter of shaft abutment
Da max.69.2 mm Diameter of housing abutment
ra max.1 mm Radius of shaft or housing fillet
