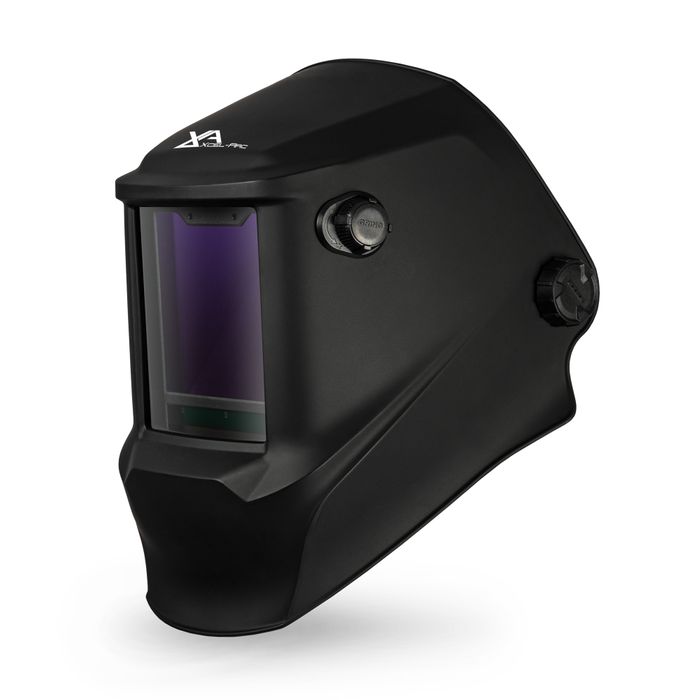

Xcel/Arc AS9000D 102.5x102.5 Large View Welding Helmet
Description
Keep your eyes and face protected during every weld with our AS9000D helmets. Featuring advanced auto shade detection technology and five arc sensors, these helmets eliminate the guesswork in shade selection. With a perfect 1/1/1/1 optical classification and our largest viewing lens yet, you’ll experience unparalleled clarity. The sleek, professional black design adds a touch of style to top-tier functionality.
HELMET SPECIFICATIONS:
FILTER DIMENSIONS: 114x133x9.5mm
VIEW SIZE: 102.5x102.5mm
ARC SENSORS: 4 Arc Sensors, 1 Arc Intensity Sensor
CLASSIFICATION: 1/1/1/1
LIGHT STATE: 3
DARK STATE: 5-9 / 9-13
UV/IR PROTECTION: DIN15
TIME FROM LIGHT TO DARK: 0.04ms
TIME FROM DARK TO LIGHT: 0.1-0.9s
SENSITIVITY DELAY: Adjustable (1-5 for low-high)
POWER SUPPLY: Solar Cells & 2 x CR2450 Replaceable Batteries
WARRANTY: 3 Years
OPERATING TEMPERATURE: -10°C to 65°C
STORAGE TEMPERATURE: -20°C to 85°C
SHADE CONTROL: Yes
GRIND MODE: Yes (External)
STANDARDS: AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)
REPLACABLE PARTS:
OUTER LENS: XA-FCL133-114
INNER LENS: XA-ICL108-108
HARNESS: XA-AS-4-HB
SWEAT BAND: XA-AS-4-SWB
HARNESS BACK PAD: XA-AS-4-BP
FILTER: SUPER V
MAGNIFICATION LENS: MWL4215 - 1.5x Magnification Lens, MWL4220 - 2.0x Magnification Lens, MWL4225 - 2.5x Magnification Lens
