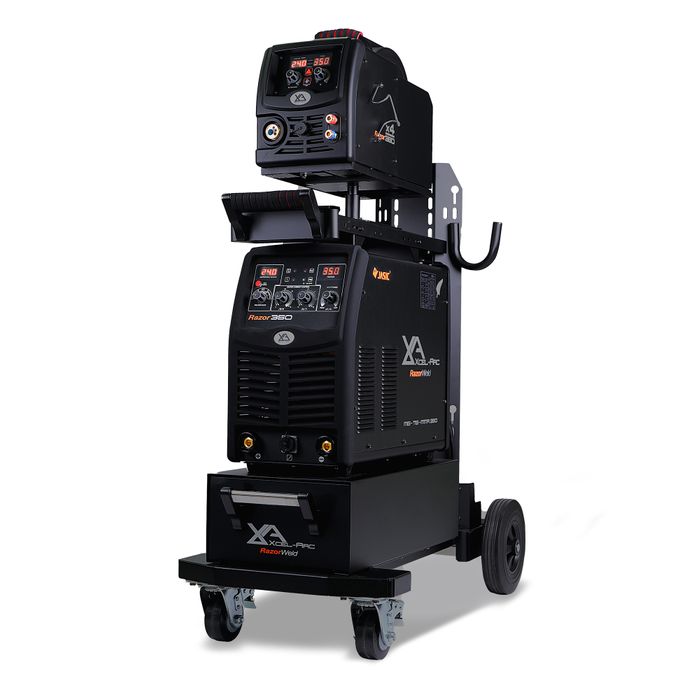

Xcel/Arc RAZORWELD™ 350RZ SWF MIG/TIG/STICK Welder

Stock Code:
XA-MIG350RZSWF-K
Price:
$6,485.00
Stock Level:
Low Stock
Unavailable for Online Purchase: Contact store for availability
Add to Favourites
Make an Enquiry
(0 reviews)

Description

The RAZORWELD™ 350RZ SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with a solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 350RZ SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZORWELD™ SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from XCEL-ARC’s range.


MACHINE SPECIFICATIONS:
PRIMARY INPUT VOLTAGE: 415V Three Phase

SUPPLY PLUG: No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA): 12.8

Ieff (A): 26.0

RATED OUTPUT: MIG- 50A/16.5V - 350A/39.0V | MMA- 20A/20.8V - 350A/40.0V

NO LOAD VOLTAGE (V): 65

PROTECTION CLASS: IP21S

INSULATION CLASS: F

POWER FACTOR: 0.93

MINIMUM GENERATOR (kVA): 20.0

DINSE CONNECTOR: 35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years): 3

MIG Specifications:
MIG WELDING CURRENT RANGE: 50-350A

MIG DUTY CYCLE @ 40°C: 60% @ 350A

MIG WIRE SIZE RANGE: 0.8-1.6mm

MIG WIRE SPOOL SIZE: 5kg / 15kg

MIG WELDING THICKNESS RANGE: 1-12mm

DRIVE ROLLER SIZE: 30/22 (x2)

TIG SPECIFICATIONS:
TIG FUNCTION TYPE: DC Lift Arc

TIG WELDING CURRENT RANGE: 20-350A

TIG DUTY CYCLE @ 40°C: 60% @ 350A

TIG WELDING THICKNESS RANGE: 1-10mm

STICK SPECIFICATIONS:
STICK WELDING CURRENT RANGE: 20-350A

STICK DUTY CYCLE @ 40°C: 60% @ 350A

STICK ELECTRODE RANGE: 2.5-6.0mm

STICK WELDING THICKNESS RANGE
2-16mm

Size & Weight
DIMENSIONS (mm)
630x340x560mm

WEIGHT (kg)
58.2kg

SWF DIMENSIONS (mm)
630x260x470mm

SWF WEIGHT (kg)
14kg

SWF INTERLOCKING CABLE LENGTH (m)
10m

MACHINE FEATURES
WIRE DRIVE
Seperate 4 Geared

SPOOL GUN CONNECTION
Yes

PUSH / PULL GUN CONNECTION
Yes

BURNBACK ADJUSTMENT
Automatic

WIRE INCH
Yes

INDUCTANCE CONTROL
Yes

THERMAL OVERLOAD PROTECTION
Over Temperature Warning

AIR ARC GOUGING
Yes
