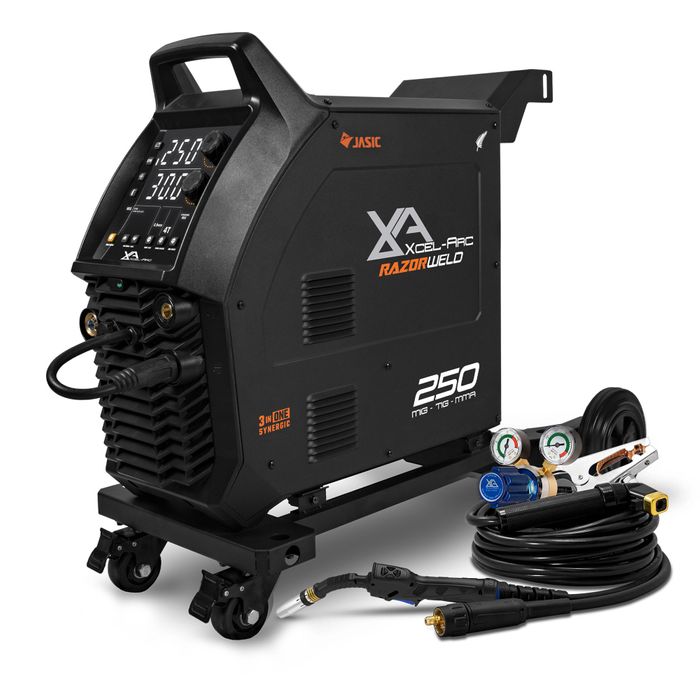

Xcel/Arc RAZORWELD™ 250W PFC MIG/TIG/MMA Welder

Stock Code:
XA-RZMIG250WPFC-K
Price:
$2,882.00
Stock Level:
Low Stock
Unavailable for Online Purchase: Contact store for availability
Add to Favourites
Make an Enquiry
(0 reviews)

Description

The RAZORWELD™ 350 is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 350 is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZORWELD™ Work Shop series is designed for superior performance, offering the highest quality of welds from Xcel Arc’s range.

MACHINE SPECIFICATIONS:
PRIMARY INPUT VOLTAGE: 415V Three-Phase

SUPPLY PLUG: No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA): MIG - 13.9 / MWA - 15.0

Ieff (A): 13.2

RATED OUTPUT: 50A/16.5V - 350A/31.5V

NO LOAD VOLTAGE (V): 64

PROTECTION CLASS: IP21S

INSULATION CLASS: F

POWER FACTOR: 0.75

MINIMUM GENERATOR (kVA): 20.0

DINSE CONNECTOR: 35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years): 3

MIG Specifications:
MIG WELDING CURRENT RANGE: 50-350A

MIG DUTY CYCLE @ 40°C: 40% @ 350A

MIG WIRE SIZE RANGE: 0.6-1.2mm

MIG WIRE SPOOL SIZE: 5kg / 15kg

MIG WELDING THICKNESS RANGE: 1-12mm

DRIVE ROLLER SIZE: 30/22 (x2)

TIG SPECIFICATIONS:
TIG FUNCTION TYPE: DC Lift Arc

TIG WELDING CURRENT RANGE: 20-350A

TIG DUTY CYCLE @ 40°C: 40% @ 350A

TIG WELDING THICKNESS RANGE: 2-10mm

STICK SPECIFICATIONS:
STICK WELDING CURRENT RANGE: 20-350A

STICK DUTY CYCLE @ 40°C: 40% @ 350A

STICK ELECTRODE RANGE: 2.5-6.0mm

STICK WELDING THICKNESS RANGE: 2-16mm

Size & Weight:
DIMENSIONS (mm): 900x400x785mm

WEIGHT (kg): 60kg

MACHINE FEATURES:
WIRE DRIVE: 4 Geared

VRD: Yes

SPOOL GUN CONNECTION: Yes

PUSH / PULL GUN CONNECTION: Yes

BURNBACK ADJUSTMENT: Yes

WIRE INCH: Yes

INDUCTANCE CONTROL: Yes

THERMAL OVERLOAD PROTECTION: Over Temperature Warning
