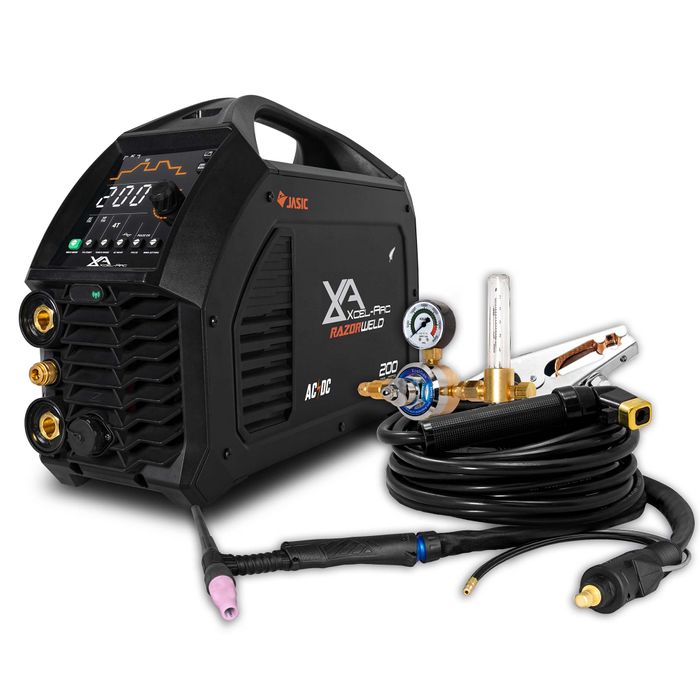

"RAZORWELD TIG200ACDCPFC Inverter Welder

Stock Code:
XA-RZTIG200ACDCPFC-T
Price:
$3,010.00
Stock Level:
Low Stock
Unavailable for Online Purchase: Contact store for availability
Add to Favourites
Make an Enquiry
(0 reviews)

Description

Get incredible results from start to finish with this professional-grade TIG welder.

Effortlessly weld any metal with the high-frequency AC/DC TIG
The ultimate combination of AC and DC available with Mixed Arc settings
Switch your AC welds to suit your needs with the choice of three waveforms
A 5-year warranty to reflect our confidence in this machine

MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 10 AMP
Ieff (A): 9.5
RATED OUTPUT: 5-200A
NO LOAD VOLTAGE (V): 65
PROTECTION CLASS: IP23S
INSULATION CLASS: H
MINIMUM GENERATOR (kVA): 9.0
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
SUITABLE MATERIAL: TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron
WARRANTY (Years): 5

TIG SPECIFICATIONS
TIG FUNCTION TYPE: AC/DC HF TIG & AC/DC Pulse
TIG WELDING CURRENT RANGE: 5-200A
TIG DUTY CYCLE @ 40°C: 20% @ 200A, 60% @ 115A, 100% @ 90A
TIG WELDING THICKNESS RANGE: 1-8mm

STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE: 20-160A
STICK DUTY CYCLE @ 40°C: 15% @ 160A, 60% @ 80A, 100% @ 62A
STICK ELECTRODE RANGE: 2.5-4.0mm
STICK WELDING THICKNESS RANGE: 2-10mm

SIZE & WEIGHT
DIMENSIONS (mm): 500×170×340mm
WEIGHT (kg): 11.7kg

MACHINE FEATURES
VRD: Yes
FOOT CONTROL CONNECTION: YES
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
