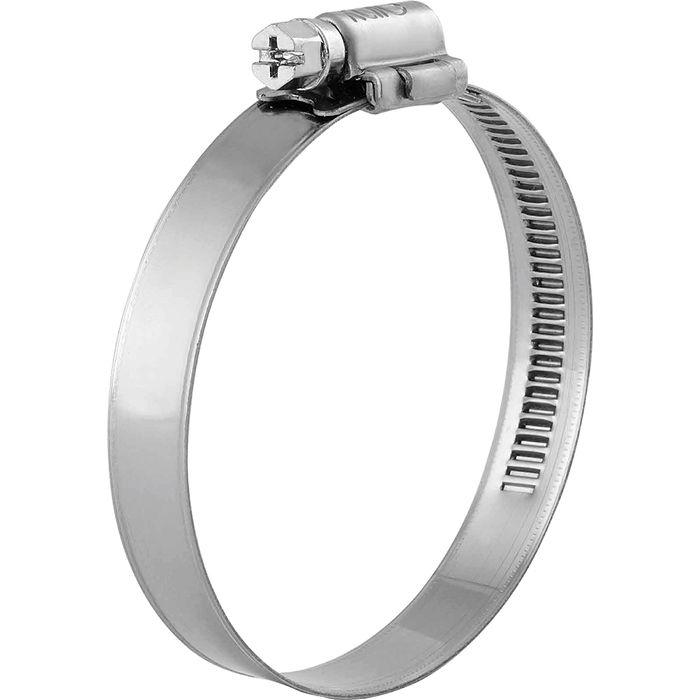

Kale W3 Worm Drive Clamps

Kale W3 Worm Drive Clamps

Stock Code:
WD121627W3
$3.94
Stock Level
In Stock
In Stock

Add To Cart

Unavailable for Online Purchase: Contact store for availability
Add to Favourites
(0 reviews)

Description

WD - Worm Drive Clamps

WD121627W3 - 12mm Band Width Worm Drive Clamp

WD12 | 16-27mm capacity | W3

Features:
• Light product, easy assembly and space saving with compact housing and screw design.
• Stronger and durable with the mechanically locked single piece design of housing.
• Burr-free and convex band edges.
• 100% traceability on the product.
• High clamping force with low tightening torque.

Technical Spec:
• Band Width - 12mm
• Capacity (min - max) - Ø 16-27mm
• Tightening Torque (max) - 5.0Nm (1)
• Screw Housing Length - 24mm
• Grade W3 - Stainless Screw, Band & Housing (2)
• Corrosion Resistance (min.Hour) IS0 9227 - 200 (3)
• Screw Head - FL | 7mm Hex

(1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm
(2) Screw - 1.4016 Stainless DIN EN-10088-3 or equivalent | Housing & Band - 1.4016 Stainless DIN EN-10088-2 or equivalent
(3) 10% red rust allowed on the total surface of W3 products, after salt spray test

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
