Kale W2 HD T-Bolt Clamp

Kale W2 HD T-Bolt Clamp

Stock Code:
HDT181719W2
Stock Code:
HDT182022W2
Stock Code:
HDT206063W2
$13.80
$7.97
$13.89
Stock Level
In Stock
In Stock
Low Stock
In Stock

Add To Cart

Unavailable for Online Purchase: Contact store for availability
Unavailable for Online Purchase: Contact store for availability
Unavailable for Online Purchase: Contact store for availability
Add to Favourites
Add to Favourites
Add to Favourites
(0 reviews)

Description

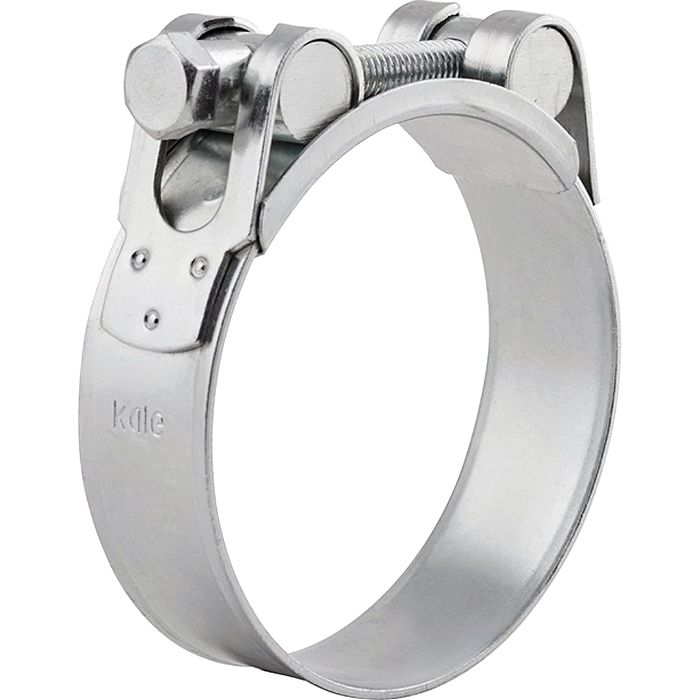

HD - Heavy Duty T-Bolt Clamp

HDT181719W2 - 18mm Band Width Heavy Duty Clamp

HD18 | 17-19mm capacity | W2

Features:
• Easy mountability at application areas with simple design.
• Uniform clamping force throughout 360 degrees.
• Three-point welded durable design.
• Burr-free and convex band edges.

Technical Spec:
• Band Width - 18mm
• Capacity (min - max) - Ø 17-19mm
• Tightening Torque (max) - 8.0Nm
• Bolt - M5 x 35mm
• Grade W2 - Zinc Plated Mild Steel Bolt, Bushing & Bolt Nut / Stainless Band & Saddle (1)
• Screw Head - 8mm Hex

(1) Bolt, Bushing & Bolt Nut - Mild Steel | Band & Saddle - 1.4301 Stainless DIN EN-10088-2 or equivalent

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.

HD - Heavy Duty T-Bolt Clamp

HDT182022W2 - 18mm Band Width Heavy Duty Clamp

HD18 | 20-22mm capacity | W2

Features:
• Easy mountability at application areas with simple design.
• Uniform clamping force throughout 360 degrees.
• Three-point welded durable design.
• Burr-free and convex band edges.

Technical Spec:
• Band Width - 18mm
• Capacity (min - max) - Ø 20-22mm
• Tightening Torque (max) - 8.0Nm
• Bolt - M5 x 35mm
• Grade W2 - Zinc Plated Mild Steel Bolt, Bushing & Bolt Nut / Stainless Band & Saddle (1)
• Screw Head - 8mm Hex

(1) Bolt, Bushing & Bolt Nut - Mild Steel | Band & Saddle - 1.4301 Stainless DIN EN-10088-2 or equivalent

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.

HD - Heavy Duty T-Bolt Clamp

HDT206063W2 - 20mm Band Width Heavy Duty Clamp

HD20 | 60-63mm capacity | W2

Features:
• Easy mountability at application areas with simple design.
• Uniform clamping force throughout 360 degrees.
• Three-point welded durable design.
• Burr-free and convex band edges.

Technical Spec:
• Band Width - 20mm
• Capacity (min - max) - Ø 60-63mm
• Tightening Torque (max) - 10.0Nm
• Bolt - M6 x 55mm
• Grade W2 - Zinc Plated Mild Steel Bolt, Bushing & Bolt Nut / Stainless Band & Saddle (1)
• Screw Head - 10mm Hex

(1) Bolt, Bushing & Bolt Nut - Mild Steel | Band & Saddle - 1.4301 Stainless DIN EN-10088-2 or equivalent

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
